PRODUCT OVERVIEW-Lasting Diamond (HK) Technology

Orifices

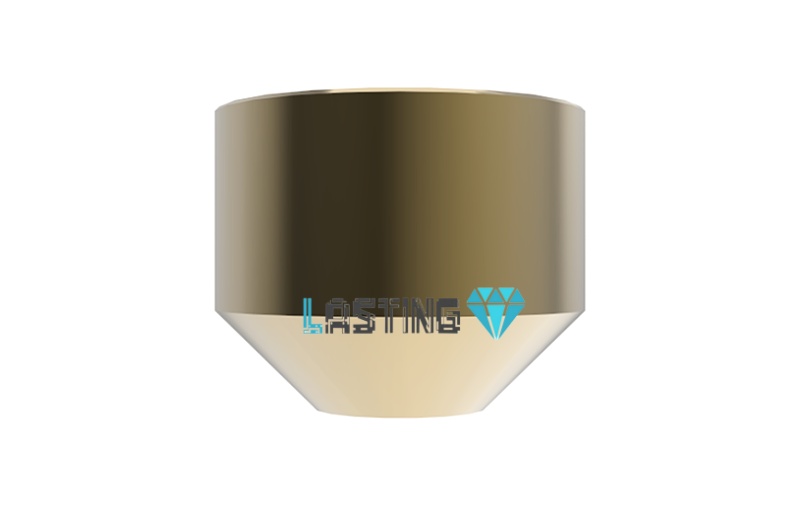

Diamond - Flow ECL

Part No.	ID (mm)	ID (Inch)
21D-04	0.102	0.004
21D-05	0.127	0.005
21D-06	0.152	0.006
21D-07	0.178	0.007
21D-08	0.203	0.008
21D-09	0.229	0.009
21D-10	0.254	0.010
21D-11	0.279	0.011
21D-12	0.305	0.012
21D-13	0.330	0.013
21D-20	0.508	0.020

Replace #014155-XX

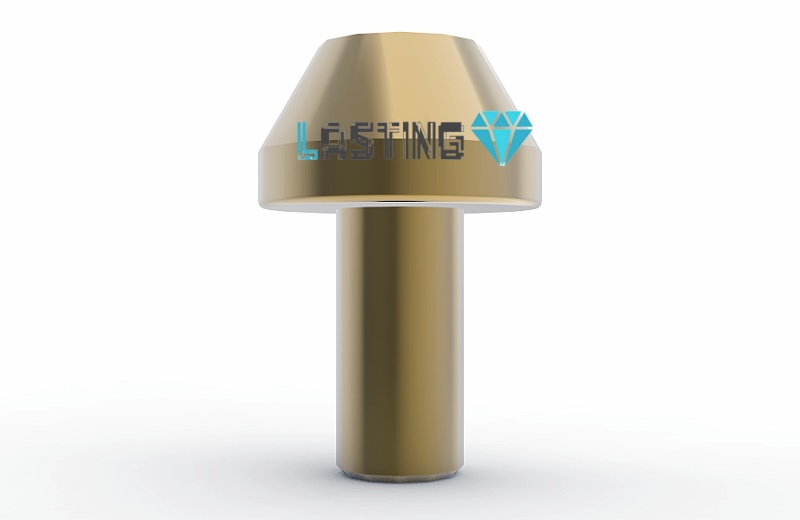

Diamond - Flow Paser3

Part No.	ID (mm)	ID (Inch)
22D-04	0.102	0.004
22D-05	0.127	0.005
22D-06	0.152	0.006
22D-07	0.178	0.007
22D-08	0.203	0.008
22D-09	0.229	0.009
22D-10	0.254	0.010
22D-11	0.279	0.011
22D-12	0.305	0.012
22D-13	0.330	0.013
22D-20	0.508	0.020

Replace #009519-XX

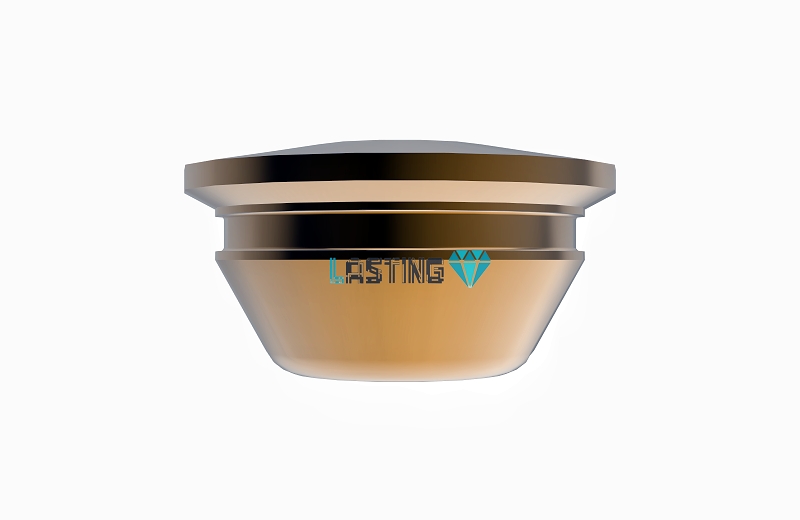

Diamond - Flow Standard Mount

Part No.	ID (mm)	ID (Inch)
DO-03-002	0.050	0.002
DO-03-004	0.102	0.004
DO-03-006	0.152	0.006
DO-03-007	0.178	0.007
DO-03-008	0.203	0.008
DO-03-009	0.229	0.009
DO-03-010	0.254	0.010
DO-03-011	0.279	0.011
DO-03-012	0.305	0.012
DO-03-013	0.330	0.013
DO-03-020	0.508	0.020

Replace #004519-XX

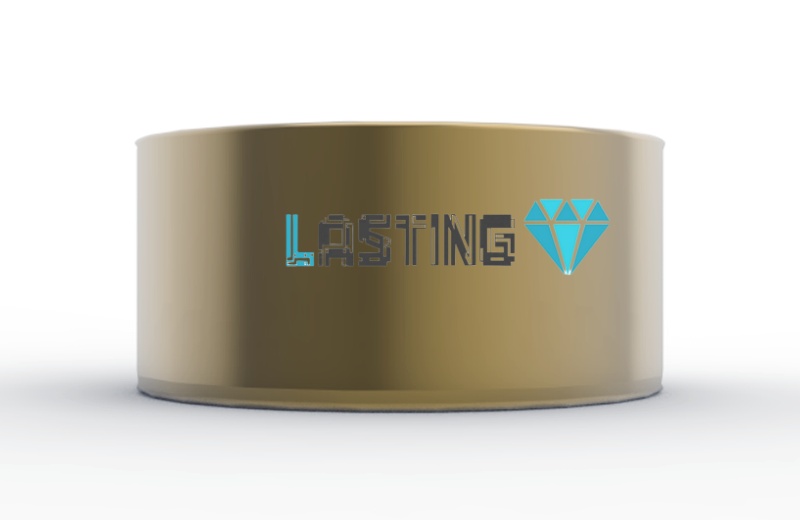

Diamond- Flow Paser4

Part No.	ID (mm)	ID (Inch)
24D-04	0.102	0.004
24D-05	0.127	0.005
24D-06	0.152	0.006
24D-07	0.178	0.007
24D-08	0.203	0.008
24D-09	0.229	0.009
24D-10	0.254	0.010
24D-11	0.279	0.011
24D-12	0.305	0.012
24D-13	0.330	0.013
24D-20	0.508	0.020

Replace #015849-XX

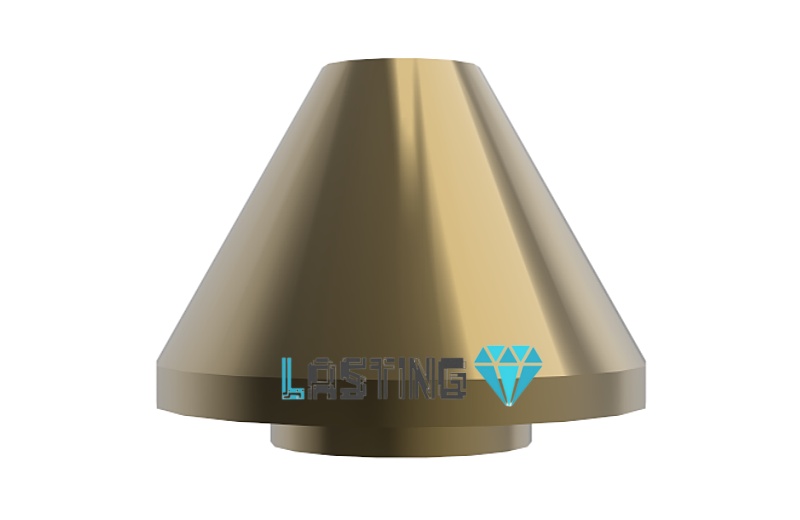

Diamond - Omax MAXJET5i

Part No.	ID (mm)	ID (Inch)
25D-04	0.102	0.004
25D-05	0.127	0.005
25D-06	0.152	0.006
25D-07	0.178	0.007
25D-08	0.203	0.008
25D-09	0.229	0.009
25D-10	0.254	0.010
25D-11	0.279	0.011
25D-12	0.305	0.012
25D-13	0.330	0.013
25D-20	0.508	0.020

Replace #305322-XX

Diamond - Dialine

Part No.	ID (mm)	ID (Inch)
26D-04	0.102	0.004
26D-05	0.127	0.005
26D-06	0.152	0.006
26D-07	0.178	0.007
26D-08	0.203	0.008
26D-09	0.229	0.009
26D-10	0.254	0.010
26D-11	0.279	0.011
26D-12	0.305	0.012
26D-13	0.330	0.013
26D-20	0.508	0.020

Replace #12749-XX

Diamond - KMT Autoline

Part No.	ID (mm)	ID (Inch)
27D-04	0.102	0.004
27D-05	0.127	0.005
27D-06	0.152	0.006
27D-07	0.178	0.007
27D-08	0.203	0.008
27D-09	0.229	0.009
27D-10	0.254	0.010
27D-11	0.279	0.011
27D-12	0.305	0.012
27D-13	0.330	0.013
27D-20	0.508	0.020

Replace #050770-xx

Diamond - KMT Food-Ggrade

Part No.	ID (mm)	ID (Inch)
28D-04	0.102	0.004
28D-05	0.127	0.005
28D-06	0.152	0.006
28D-07	0.178	0.007
28D-08	0.203	0.008
28D-09	0.229	0.009
28D-10	0.254	0.010
28D-11	0.279	0.011
28D-12	0.305	0.012
28D-13	0.330	0.013
28D-20	0.508	0.020

Replace #49888-xx

Diamond - Accustream A2

Part No.	ID (mm)	ID (Inch)
29D-04	0.102	0.004
29D-05	0.127	0.005
29D-06	0.152	0.006
29D-07	0.178	0.007
29D-08	0.203	0.008
29D-09	0.229	0.009
29D-10	0.254	0.010
29D-11	0.279	0.011
29D-12	0.305	0.012
29D-13	0.330	0.013
29D-20	0.508	0.020

Replace #11007D-xx

Diamond - Long Stem

Part No.	ID (mm)	ID (Inch)
30D-04	0.102	0.004
30D-05	0.127	0.005
30D-06	0.152	0.006
30D-07	0.178	0.007
30D-08	0.203	0.008
30D-09	0.229	0.009
30D-10	0.254	0.010
30D-11	0.279	0.011
30D-12	0.305	0.012
30D-13	0.330	0.013
30D-20	0.508	0.020

Replace #12612D-XX

Diamond - Low Mass

Part No.	ID (mm)	ID (Inch)
31D-04	0.102	0.004
31D-05	0.127	0.005
31D-06	0.152	0.006
31D-07	0.178	0.007
31D-08	0.203	0.008
31D-09	0.229	0.009
31D-10	0.254	0.010
31D-11	0.279	0.011
31D-12	0.305	0.012
31D-13	0.330	0.013
31D-20	0.508	0.020

Replace #D-5071-XX / TL-003004-XX

Diamond - Flow Paser2 Instajet

Part No.	ID (mm)	ID (Inch)
32D-04	0.102	0.004
32D-05	0.127	0.005
32D-06	0.152	0.006
32D-07	0.178	0.007
32D-08	0.203	0.008
32D-09	0.229	0.009
32D-10	0.254	0.010
32D-11	0.279	0.011
32D-12	0.305	0.012
32D-13	0.330	0.013
32D-20	0.508	0.020

Replace #TL-003004-XX, D-5071-XX

Diamond - KMT Short Stem

Part No.	ID (mm)	ID (Inch)
33D-04	0.102	0.004
33D-05	0.127	0.005
33D-06	0.152	0.006
33D-07	0.178	0.007
33D-08	0.203	0.008
33D-09	0.229	0.009
33D-10	0.254	0.010
33D-11	0.279	0.011
33D-12	0.305	0.012
33D-13	0.330	0.013
33D-20	0.508	0.020

Replace #49888886, WJS , Comadur Type 27

Diamond - Jetedge Permalign II

Part No.	ID (mm)	ID (Inch)
35D-04	0.102	0.004
35D-05	0.127	0.005
35D-06	0.152	0.006
35D-07	0.178	0.007
35D-08	0.203	0.008
35D-09	0.229	0.009
35D-10	0.254	0.010
35D-11	0.279	0.011
35D-12	0.305	0.012
35D-13	0.330	0.013
35D-20	0.508	0.020

Replace #100158-XX

Diamond - Teenking

Part No.	ID (mm)	ID (Inch)
36D-04	0.102	0.004
36D-05	0.127	0.005
36D-06	0.152	0.006
36D-07	0.178	0.007
36D-08	0.203	0.008
36D-09	0.229	0.009
36D-10	0.254	0.010
36D-11	0.279	0.011
36D-12	0.305	0.012
36D-13	0.330	0.013
36D-20	0.508	0.020

Diamond - SAME

Part No.	ID (mm)	ID (Inch)
37D-04	0.102	0.004
37D-05	0.127	0.005
37D-06	0.152	0.006
37D-07	0.178	0.007
37D-08	0.203	0.008
37D-09	0.229	0.009
37D-10	0.254	0.010
37D-11	0.279	0.011
37D-12	0.305	0.012
37D-13	0.330	0.013
37D-20	0.508	0.020

Diamond - Microjet

Part No.	ID (mm)	ID (Inch)
38D-30M	0.03
38D-40M	0.04
38D-50M	0.05
38D-60M	0.06
38D-70M	0.07
38D-80M	0.08

Diamond - Microjet

Part No.	ID (mm)	ID (Inch)
39D-30M	0.03
39D-40M	0.04
39D-50M	0.05
39D-60M	0.06
39D-70M	0.07
39D-80M	0.08

Diamond - FLOW SIDE FIRE, 94K

Part No.	ID (mm)	ID (Inch)
40D-04	0.102	0.004
40D-05	0.127	0.005
40D-06	0.152	0.006
40D-07	0.178	0.007
40D-08	0.203	0.008
40D-09	0.229	0.009
40D-10	0.254	0.010
40D-11	0.279	0.011
40D-12	0.305	0.012
40D-13	0.330	0.013
40D-20	0.508	0.020

Replace #043225-XX

Diamond-GlobalMAX

Part No.	ID (mm)	ID (Inch)
41D-04	0.102	0.004
41D-05	0.127	0.005
41D-06	0.152	0.006
41D-07	0.178	0.007
41D-08	0.203	0.008
41D-09	0.229	0.009
41D-10	0.254	0.010
41D-11	0.279	0.011
41D-12	0.305	0.012
41D-13	0.330	0.013
41D-20	0.508	0.020

Replace #318828-XX

Diamond - Microjet

Part No.	ID (mm)	ID (Inch)
46D-30M	0.03
46D-40M	0.04
46D-50M	0.05
46D-60M	0.06
46D-70M	0.07
46D-80M	0.08

Diamond - COMADUR TYPE 25

Part No.	ID (mm)	ID (Inch)
47D-04	0.102	0.004
47D-05	0.127	0.005
47D-06	0.152	0.006
47D-07	0.178	0.007
47D-08	0.203	0.008
47D-09	0.229	0.009
47D-10	0.254	0.010
47D-11	0.279	0.011
47D-12	0.305	0.012
47D-13	0.330	0.013
47D-20	0.508	0.020

Diamond - Microjet

Part No.	ID (mm)	ID (Inch)
48D-30M	0.03
48D-40M	0.04
48D-50M	0.05
48D-60M	0.06
48D-70M	0.07
48D-80M	0.08

Diamond - Microjet

Part No.	ID (mm)	ID (Inch)
49D-30M	0.03
49D-40M	0.04
49D-50M	0.05
49D-60M	0.06
49D-70M	0.07
49D-80M	0.08

Diamond - Microjet

Part No.	ID (mm)	ID (Inch)
50D-30M	0.03
50D-40M	0.04
50D-50M	0.05
50D-60M	0.06
50D-70M	0.07
50D-80M	0.08

Diamond - Microjet

Part No.	ID (mm)	ID (Inch)
91D-30M	0.03
91D-40M	0.04
91D-50M	0.05
91D-60M	0.06
91D-70M	0.07
91D-80M	0.08

Diamond - Microjet

Part No.	ID (mm)	ID (Inch)
92D-30M	0.03
92D-40M	0.04
92D-50M	0.05
92D-60M	0.06
92D-70M	0.07
92D-80M	0.08

Diamond - LASTING Design

Part No.	ID (mm)	ID (Inch)
94D-04	0.102	0.004
94D-05	0.127	0.005
94D-06	0.152	0.006
94D-07	0.178	0.007
94D-08	0.203	0.008
94D-09	0.229	0.009
94D-10	0.254	0.010
94D-11	0.279	0.011
94D-12	0.305	0.012
94D-13	0.330	0.013
94D-20	0.508	0.020

Diamond - Custom Built

Part No.	ID (mm)	ID (Inch)
95D-04	0.102	0.004
95D-05	0.127	0.005
95D-06	0.152	0.006
95D-07	0.178	0.007
95D-08	0.203	0.008
95D-09	0.229	0.009
95D-10	0.254	0.010
95D-11	0.279	0.011
95D-12	0.305	0.012
95D-13	0.330	0.013
95D-20	0.508	0.020

Diamond - LASTING Design

Part No.	ID (mm)	ID (Inch)
102D-04	0.102	0.004
102D-05	0.127	0.005
102D-06	0.152	0.006
102D-07	0.178	0.007
102D-08	0.203	0.008
102D-09	0.229	0.009
102D-10	0.254	0.010
102D-11	0.279	0.011
102D-12	0.305	0.012
102D-13	0.330	0.013
102D-20	0.508	0.020

Diamond - LASTING Design

Part No.	ID (mm)	ID (Inch)
103D-04	0.102	0.004
103D-05	0.127	0.005
103D-06	0.152	0.006
103D-07	0.178	0.007
103D-08	0.203	0.008
103D-09	0.229	0.009
103D-10	0.254	0.010
103D-11	0.279	0.011
103D-12	0.305	0.012
103D-13	0.330	0.013
103D-20	0.508	0.020

Diamond - H2O LM-II-L

Part No.	ID (mm)	ID (Inch)
107D-04	0.102	0.004
107D-05	0.127	0.005
107D-06	0.152	0.006
107D-07	0.178	0.007
107D-08	0.203	0.008
107D-09	0.229	0.009
107D-10	0.254	0.010
107D-11	0.279	0.011
107D-12	0.305	0.012
107D-13	0.330	0.013
107D-20	0.508	0.020

Replace #201201-XX

Sapphire - MAXJET4 Dump Valve

Part No.	ID (mm)	ID (Inch)
113D-04	0.102	0.004
113D-05	0.127	0.005
113D-06	0.152	0.006
113D-07	0.178	0.007
113D-08	0.203	0.008
113D-09	0.229	0.009
113D-10	0.254	0.010
113D-11	0.279	0.011
113D-12	0.305	0.012
113D-13	0.330	0.013
113D-20	0.508	0.020

Replace #302028-XX

Diamond - Sugino

Part No.	ID (mm)	ID (Inch)
115D-04	0.102	0.004
115D-05	0.127	0.005
115D-06	0.152	0.006
115D-07	0.178	0.007
115D-08	0.203	0.008
115D-09	0.229	0.009
115D-10	0.254	0.010
115D-11	0.279	0.011
115D-12	0.305	0.012
115D-13	0.330	0.013
115D-20	0.508	0.020

Replace #
